Product Model		MSSEGA-12V75AH-500W
Input	Solar Panel Input	1. Voltage:18V Power:≤150W
	Solar Panel Input	2. Voltage:18V Power:≤300W (Note:2 option)
	+/- Terminal Input	Voltage:DC14.6V Current:≤30A
AC Output	Output Power	Rated Power:500W / Peak Power:1000W
	Output Voltage	AC220V
	Output Frequency(Hz)	50Hz
	Output Wave	Pure Sine Wave
	Max Efficiency	>90%
DC Output	USB Output	5V 2.1A / 1A
	+/- Terminal Output	Voltage:10-14.6V Current:≤30A
	DC12V Output	Voltage:10-14.6V DC1:2A DC2:2A DC3:2A 12V LED Lamp need constant current function.
	12V Car Charger	Voltage:10-14.6V Current :≤8A
	LED	≤1W
Fuse	220V Fuse	5*20mm 250V 5A
Other	Weight Dimension	Weight:approx 16.5Kg Dimension:195290261
Other	Li-ion Battery Pack	12.8V75000mAH/960WH

NOTICES:

1. This product contains lithium batteries, attention away from the source of fire.

2. Do not use this product in wet environment or water, pay attention to damp.

3. This product should be handled lightly, can not be fallen, beat, can not plug metal objects to the vent.

4. This product should be used in a well-ventilated place,When using this product and within 30 minutes after end of use,cannot cover this product with any articles, also cannot block the air vent.

5. When using AC220V power supply, first turn on the switch,after the lights is lighting 3 seconds ,then connect with electrical appliances.

6. the power of AC220V electrical load should not exceed 500W. The DC port cannot exceed the specified voltage and current.

7. If this product is not used for a long time, should be charged once every three months, so as to ensure the battery life.

8. When the device appears protected (Fault:no output current or voltage ), solution: 1: turn off the LED and USB switch, 2: Use solar charging or charger adapter to charge the device, then restore the device.

9. When device is charged fully and over-charge by solar panel , AC can not normally start. Solution: disconnect the solar charging plug, then turn on the AC switch, final plug in appliances,can work normally.

If you turn on the AC switch, start normal, AC outlet no output, or output about 2S , then stop. it may be the power of appliances is too large, device run automatic protection.The solution: reduce the power of appliances, and then check the fuse if burn Off or not.If burn off, then replace 250V5A fuse.

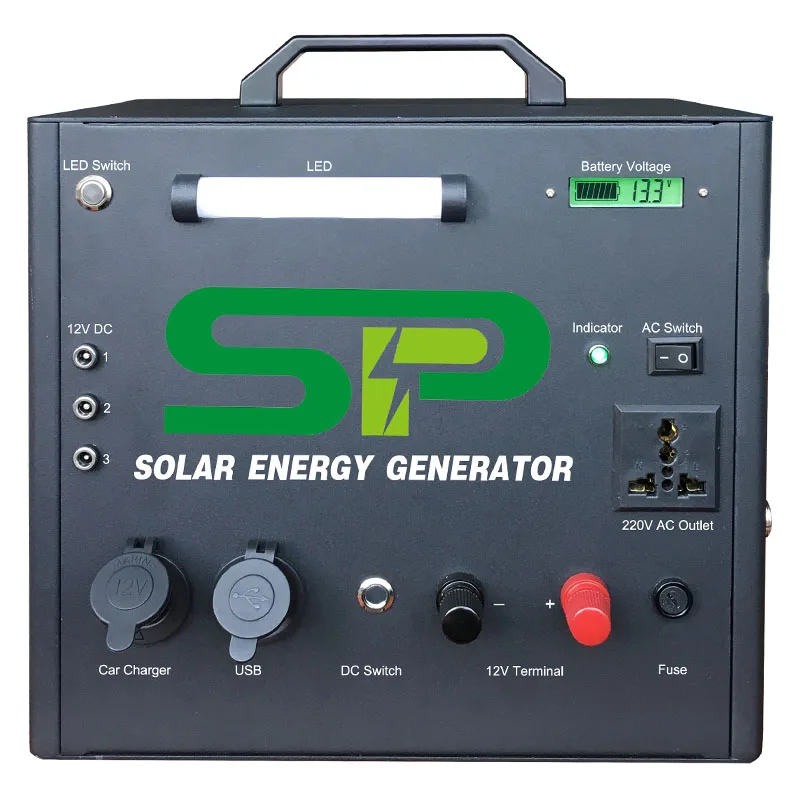

Detail Pictures
